GRAIN HOPPER

​SPECIFICATIONS:

• GENERAL DIMENSIONS: 40' LONG x 130" HIGH x 102" WIDE

• TARE WEIGHT: 10,400 LBS.

• PAYLOAD CAPACITY: 28 CUBIC YARDS

• STRUCTURE/SHEETMETAL: EXTRUDED ALUMINUM FRAME/STRUCTUREREINFORCMENT BRACES. ALUMINUM SHEETMETAL SIDES, TOP AND ENDS. STEEL SUBFRAMES

• SUSPENSION: 56,000 LBS HENRICKSON® STYLE AIR-RIDE SUSPENSION

• AXLES: 30,000 LBS. 77.5 / 71.5 HJ ROCKWELL® TANDAM AXLES OIL-BATH HUBS

• BRAKES: HALDEX® ABS BRAKES SYSTEM ON BOTH AXLES, SENSINIG FROM THE REAR AXLE, ABS INDICTOR LIGHT

• WHEELS/TIRES: 8.25 x 22.5 ALUMINUM WHEELS, 11R22.5 HIGHWAY TIRES

• HITCH/LANDING GEAR: LANDING GEAR: (2) HJ ROCKWELL® 2 SPEED, 80 TONS STATIC LOAD/PAIR JACKS.

  • UPPER  PLATE WITH KINGPIN

• MANUAL TARPING SYSTEM

• TOP ACCESS: ALUMINUM ANTI SLIP LADDER, IN THE FRONT AND REAR.

• TOP LOADING: OPEN TOP DESIGN

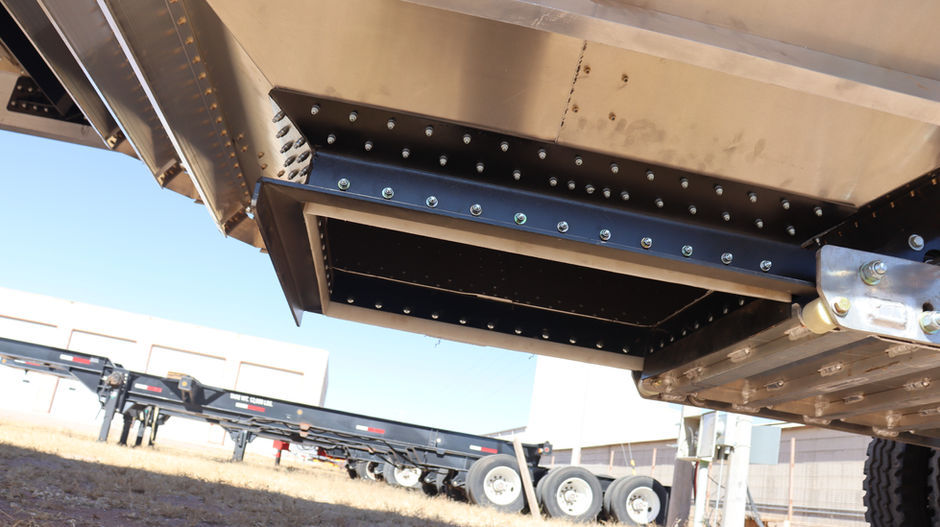

• MANUAL BOTTOM GATES:  27" LONG x 24" WIDE, 20" FROM DE FLOOR.

• ELECTRICAL/LIGHTS: GROTE® WATER/DUST RESISTANT WIRING HARNESS.

• LED TAIL/MARKER LIGHTS

• COLOR: STANDER WHITE

​

AVAILABLE OPTIONS:

• 11R22.5 ALL TERRAIN TIRES

• 8.25 x 22.5 STEEL WHEELS

• ELECTRIC SIDE ROLL TARPING SYSTEM WITH VINYL TARP.

• BOTTOM GATES: REMOTE CONTROLLED. SHURCO SMART3® ELECTRIC GATES

• OPTIONAL COLOR​
